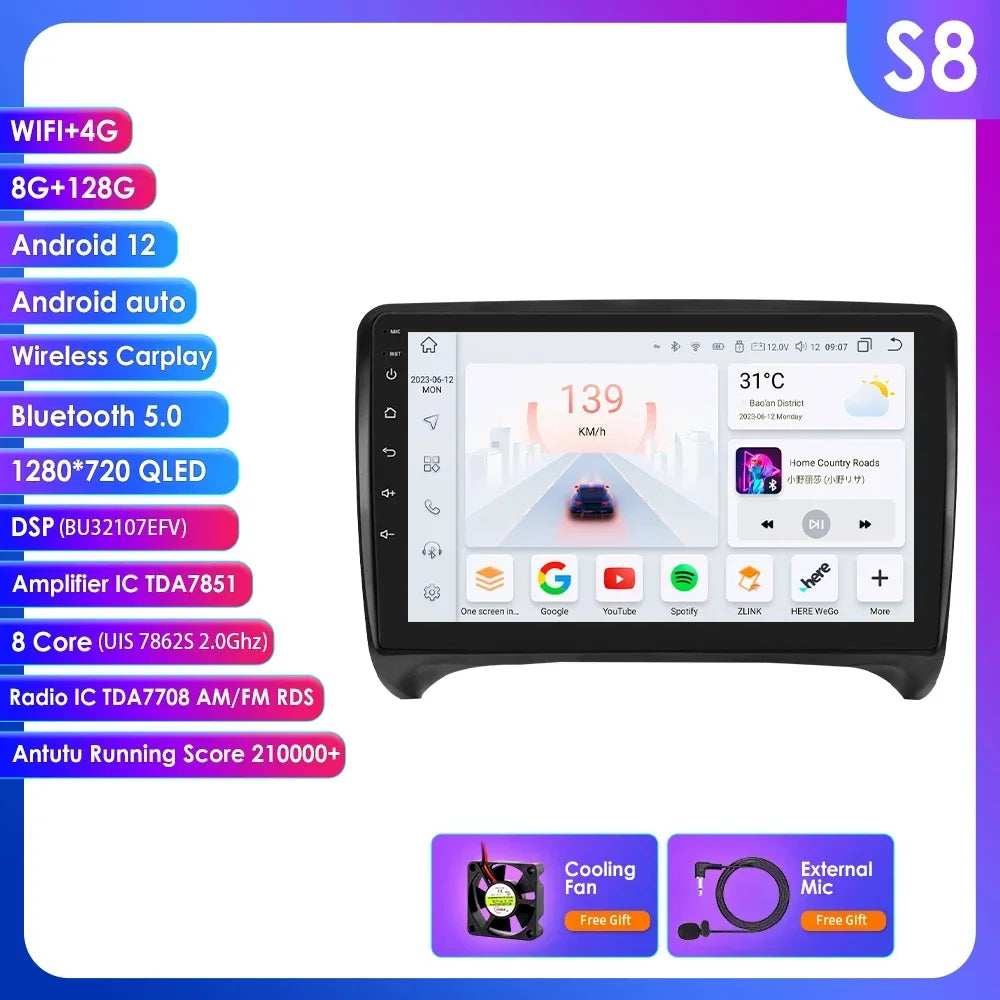

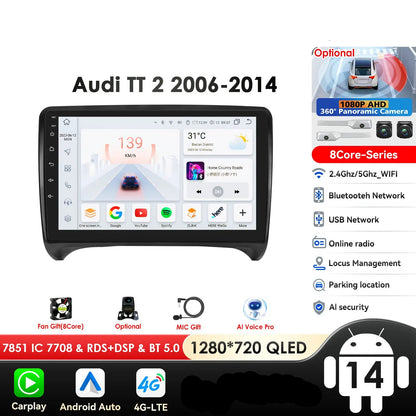

AUDI TT MK2 8J 2006 -2014 9" Android 14 Carplay Android auto wireless wifi bt gps 4g AUTMMWU1
AUDI TT MK2 8J 2006 -2014 9" Android 14 Carplay Android auto wireless wifi bt gps 4g AUTMMWU1
Impossibile caricare la disponibilità di ritiro
per AUDI TT MK2 2006 2007 2008 2009 2010 2011 2012 2013 2014
Caratteristiche :
* Android 14
* Schermo touch screen HD / QLED 9"
* 4G solo per i modelli 3gb, 4gb, 6gb, 8gb.
* Processore Quad-core / Octa-corecon 2,3,4,6,8 GB di RAM ,32,64,128 memoria interna ( da scegliere al momento del acquisto)
* Carplay e Android Auto wireless e cablato
* DSP integrato
* Supporta telecamere AHD
* Hardware di livello automobilistico :
- Amplificatore ad alta potenza TDA7388
- Radio TDA7708 con RDS
- Bluetooth 6.0
- Wi-Fi dual band (2,4 GHz e 5 GHz) -
* Dissipatore di calore in alluminio con ventola di raffreddamento
* Navigazione GPS accurata
* Decodifica CANbus ottimizzata
* Mantiene i comandi al volante
* Mantiene i sensori di parcheggio
* Mantiene info e impostazioni auto
* Display multi-task
* Riproduzione 1080P con PIP-Picture in Picture
* 2 cavi USB integrati
* Connettori plug&play montaggio rapido senza modifiche
Accessori opzionali :
-assistente vocale virtuale
-retrocamera
-camera DVR
-DAB+
-sensore pressione gomme
-OBD2
📌 Nota: Gli anni sono solo a titolo di riferimento, si prega di confermare la console centrale del veicolo prima di acquistare.

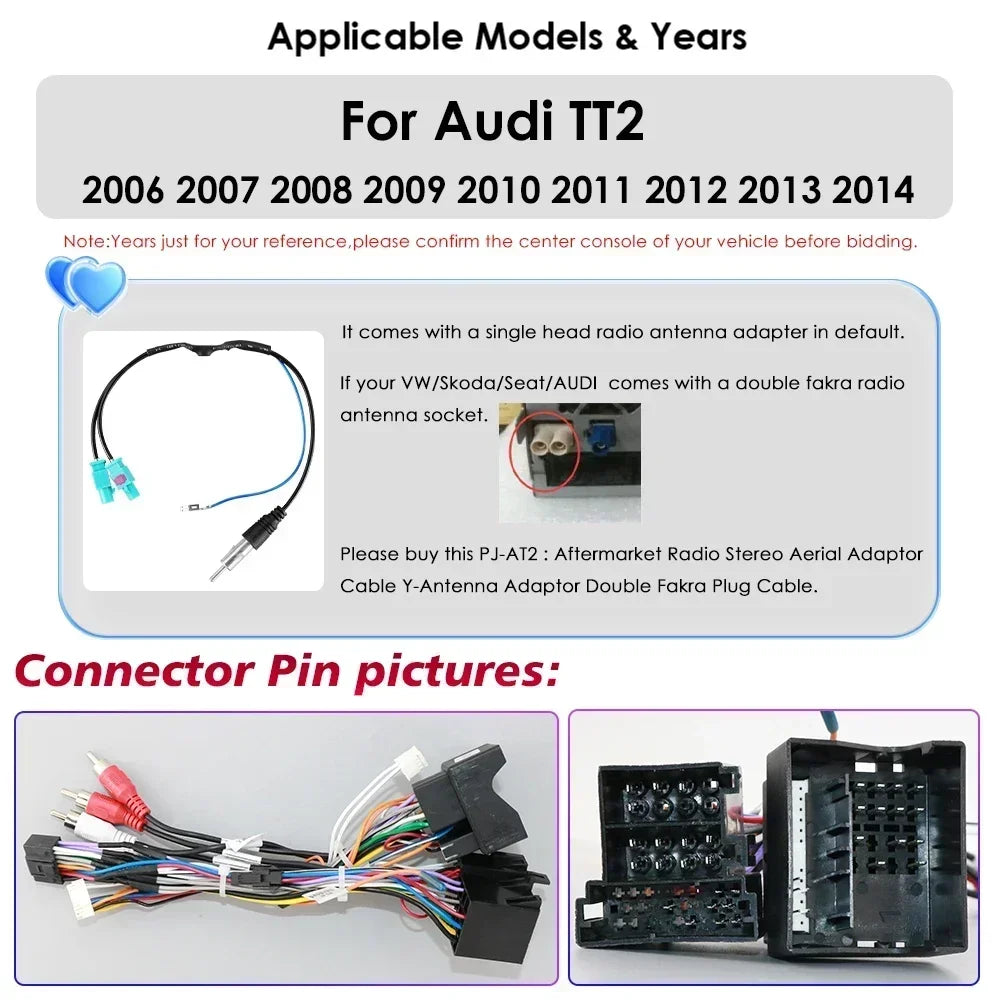

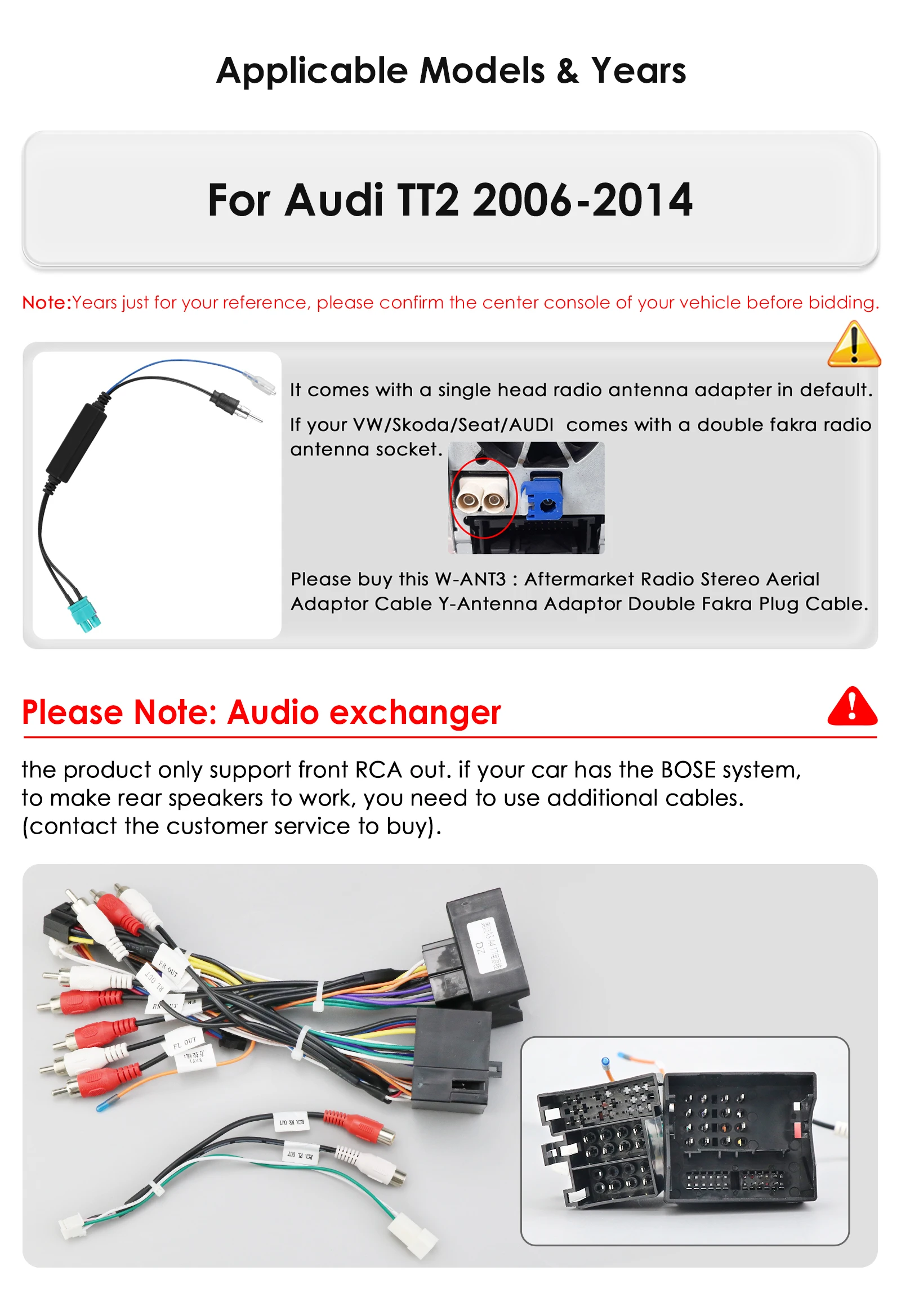

Adattatore antenna
L’unità viene fornita di default con un adattatore antenna radio a singolo connettore.
Se la tua VW/Skoda/Seat/Audi ha una presa antenna radio double fakra, devi acquistare questo cavo:
➡️ W-ANT3: Adattatore aftermarket per antenna radio stereo, cavo adattatore Y con doppio connettore Fakra.
⚠️ Nota: Audio Exchanger
Questo prodotto supporta solo l’uscita RCA frontale.
Se la tua auto ha il sistema BOSE, per far funzionare gli altoparlanti posteriori è necessario usare cavi aggiuntivi.
👉 Contatta l’assistenza clienti per acquistare i cavi necessari.

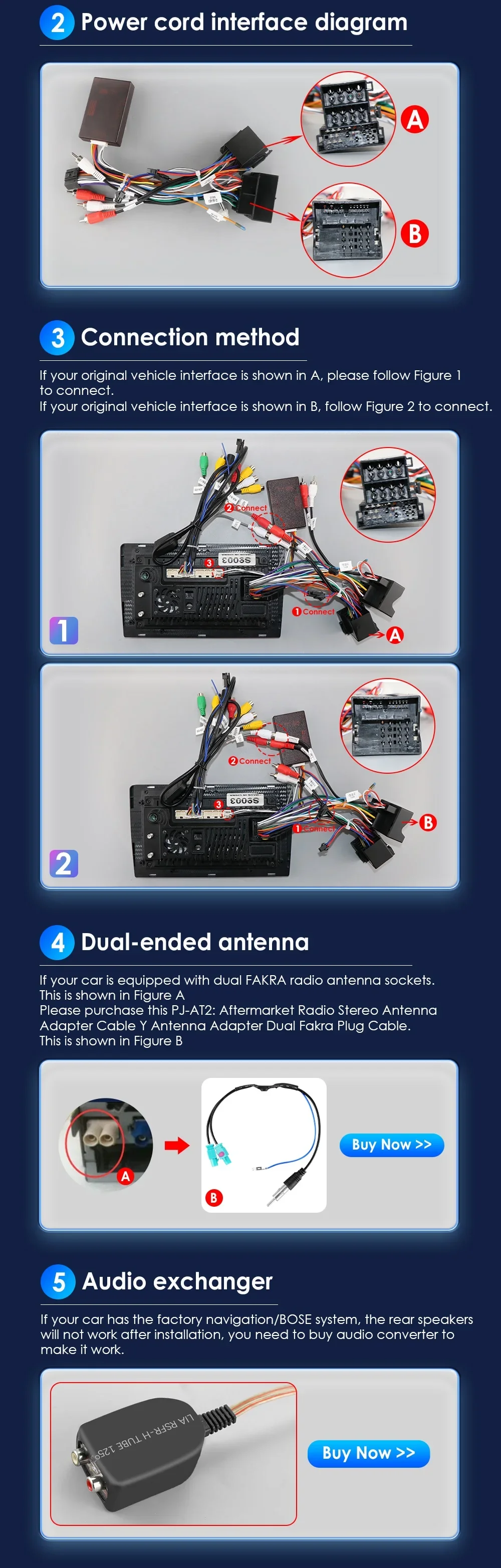

2️⃣ Schema di interfaccia del cavo di alimentazione
Se l’interfaccia originale del tuo veicolo è come mostrato in A, segui la figura 1 per collegare.
Se invece l’interfaccia è come in B, segui la figura 2 per collegare.
3️⃣ Metodo di connessione
-
Figura 1 (A):
-
Collega il connettore principale.
-
Collega Canbus.
-
-
Figura 2 (B):
-
Collega il connettore principale.
-
Non collegare Canbus.
-
4️⃣ Antenna doppia (Dual-ended antenna)
Se la tua auto è dotata di prese antenna radio dual FAKRA, come mostrato in figura A,
acquista il seguente cavo:
➡️ PJ-AT2: Adattatore aftermarket per antenna radio stereo, cavo adattatore Y con doppio connettore Fakra.
(Mostrato in figura B).
5️⃣ Convertitore Audio (Audio exchanger)
Se la tua auto ha il sistema di navigazione di fabbrica o il sistema BOSE, gli altoparlanti posteriori non funzioneranno dopo l’installazione.
👉 È necessario acquistare un convertitore audio per farli funzionare correttamente.
Modello di auto: questa unità è compatibile con il seguente modello di auto
User interface:

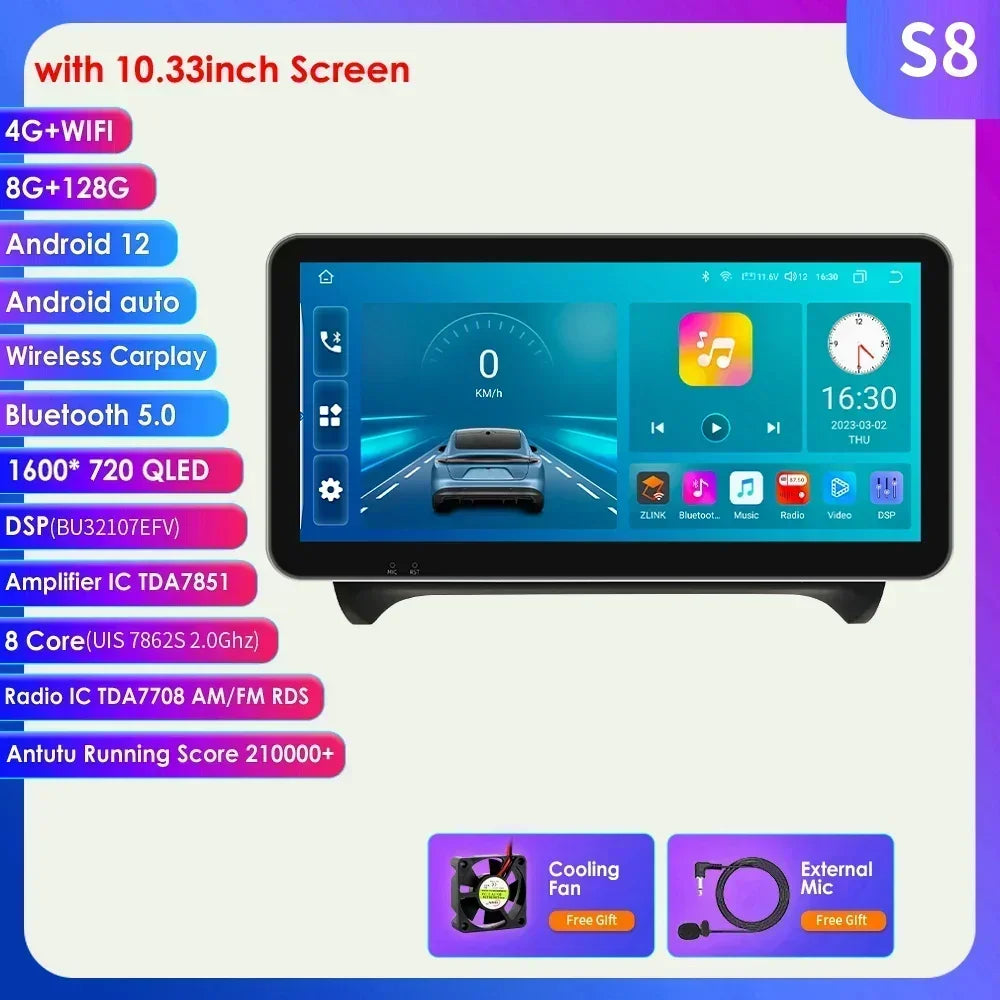

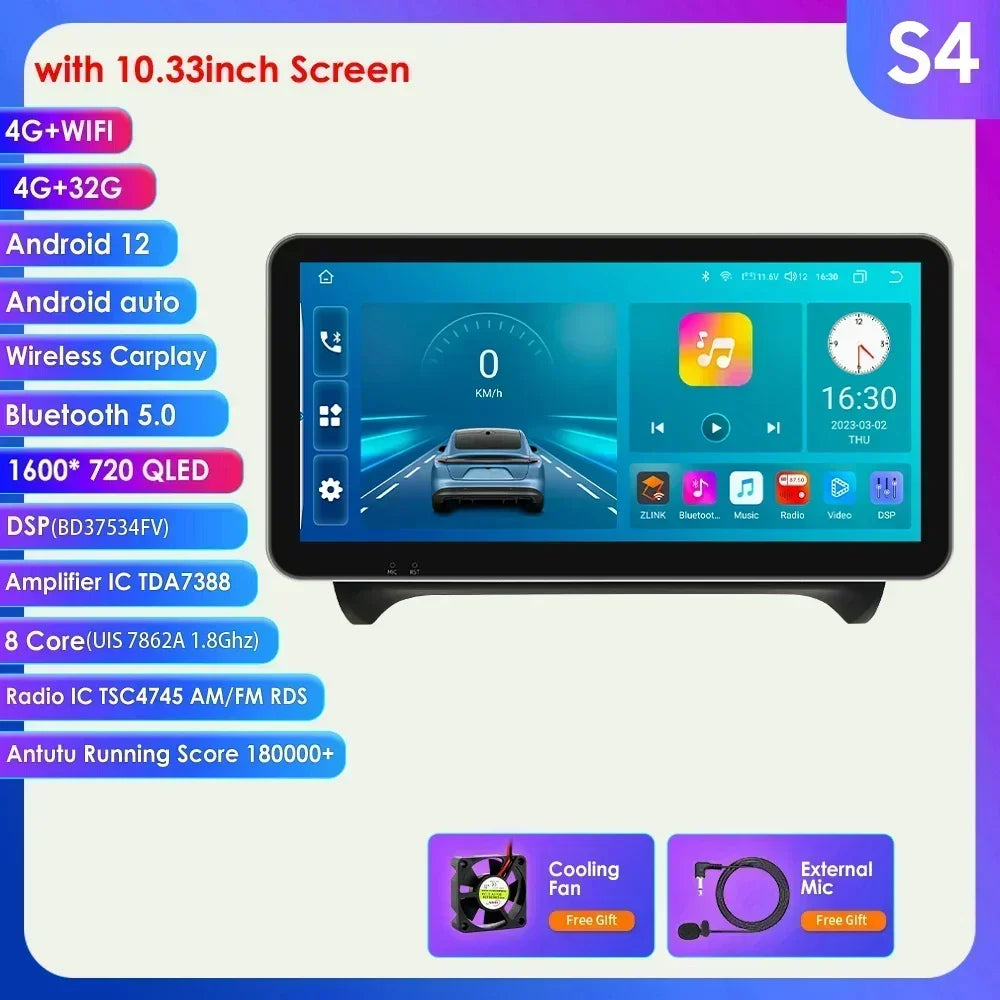

10.33inchScreen of S Series(can set as 4 color type: Blue / Black / Orange / Purple ) included S8/ S7/ S6/ S5/ S4/ S3/ S2/ S1 version;

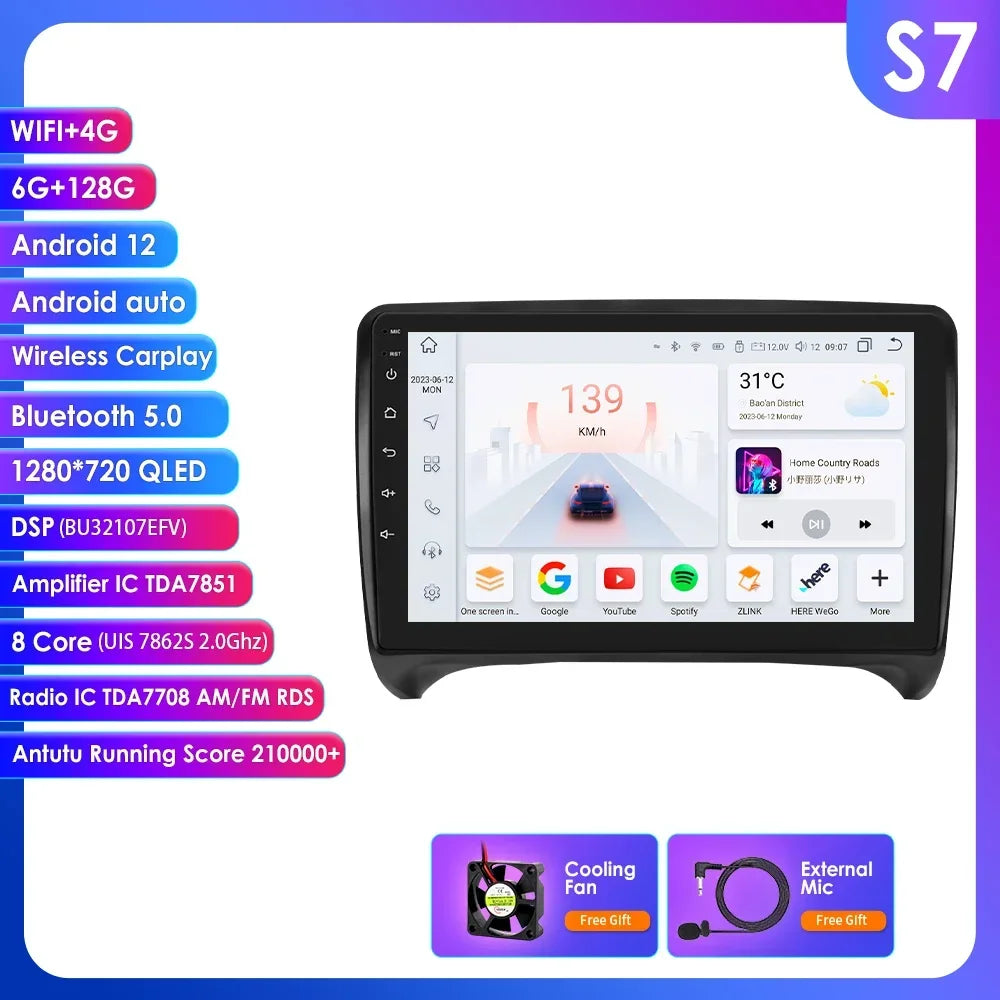

9inch Screen of S Series(can set as 4 color type: Purple/ Dark blue / Black / Golden) included S8/ S7/ S6/ S5/ S4/ S3/ S2/ S1 version; and A Series included HC1 / HC2-CP version.
Extreme Performance: A new generation of new CPU architecture, equipped with Two A75,six A55,super performance release ,easy to deal with daily needs. The specific CPU model please refer to the products configuration table.
Support Carplay / Android auto: Phone / Music / Maps / Podcasts Make your journey easier and more fun. support wireless carplay,wired android auto,wireless android auto(which needs to set its cell phone wifi hotspot's AP Band as 5 Ghz band).

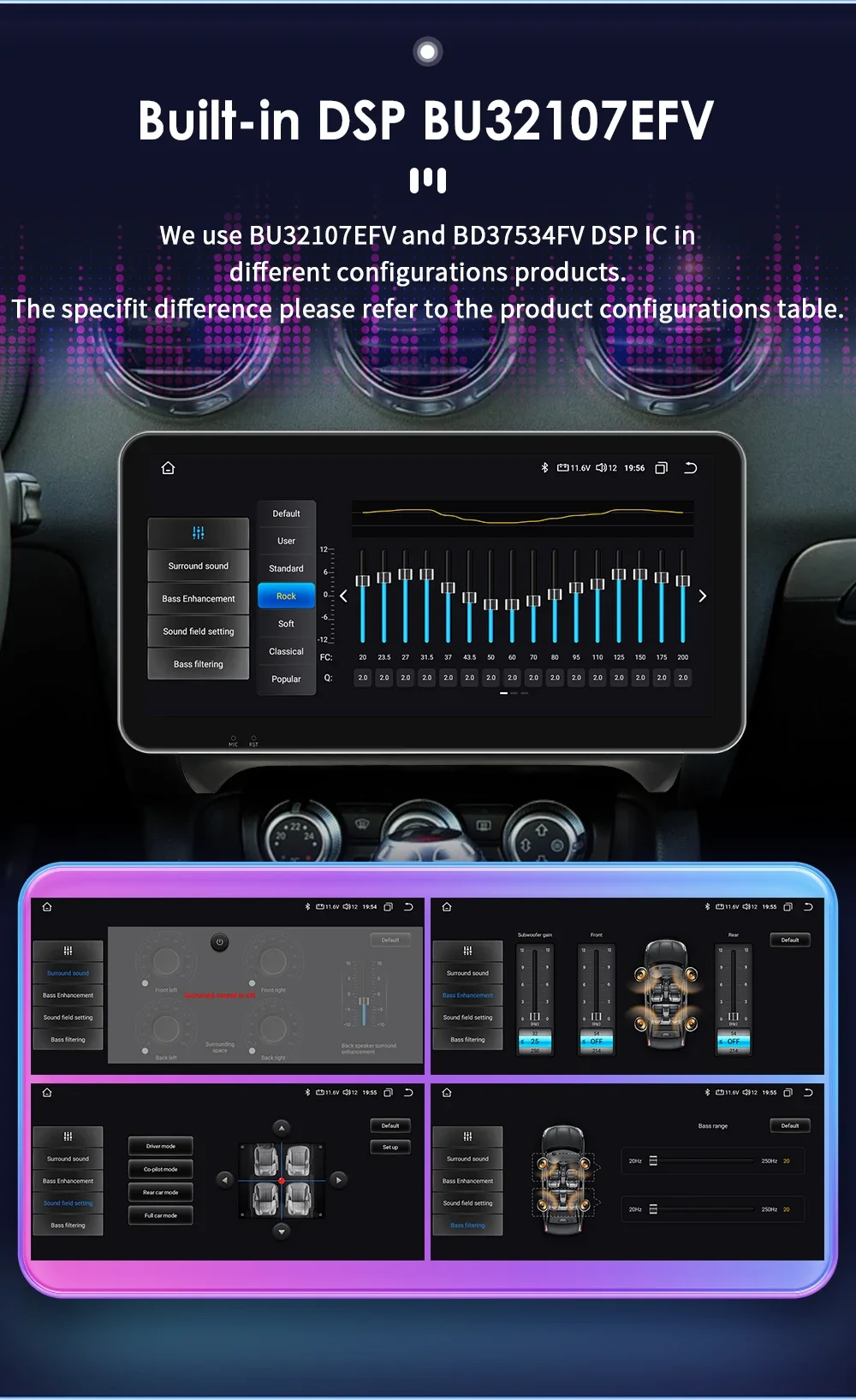

Built-in DSP BU32107EFV: We use BU32107EFV and BD37534FV DSP IC in different configurations products. The specifit difference please refer to the product configurations table.
Professional radio chip: Receive more stable radio station ,less radio noise, higher performance during driving. (We use 4745,TDA7708 and integrated radio IC in different configurations products, the specific different please refer to the products configuration table. AM / FM / RDS )
Online Radio
with an internet data connection,you can listen to online channels with no noise interference compared to traditional radio ,allowing your journey to enjoy the ultimate listening experience.
Customize settings ,Supports 20 countries ,add to favorites, Quality broadcast.,we will open up more national radio staions ,thanks you for your supports.
Anti-Theft
this feature is only supported in the 4G version (S3/S4/S5/S7/S8 options)
Locus Management:Trajectory info function allows you to check the vehicle driving trajectory in a certain time on your cellphone.
Parking location: Parking location function allows you to see your vehicle location,easy to find your vehicle,and you can set an electric fence for your vehicle,when your cehicle leaves the fence range,it will send an alarm to your cellphone.
AI Security: AI Security function allow you to check the electric fence alarm, and also you can snapshot a picture from the DVR when the device is on to see what is nearby your vehicle, ( this function require you to buy a 1080P DVR from us).
AI Voice Car System Relax Driving( Need to buy separately)
AI Intelligent Assistant Pack
our AI intelligent assistant pack included the AI voice assistant Pro,for S series radio S3 ,S4,S5,S7,S8 will add these functions works: track tracking ,packing location and online radio functions.
Bluetooth 5.0 Dual Channel: Stable and long distance Bluetooth connection. Stable and long distance WIFI connection. (On its main interface can show "Model phone battery display")
Built-in 4G Network: Please enter the SIM card before turn on the device. Include the 4G card slot, and the 4G antenna!
Audiovisual Feast
1600*720 QLED Screen (10.33inch) / 1280*720 QLED Screen (9 /10.1inch) / 1024*600 IPS Screen : Fine picture quality, true color, suiltable for more scenes, to meet your requirements
Button color changing function: Original Light color ,Red ,Yellow ,White ,Green ,Blue ,Cyan ,Purple.
AI Voice Car System Relax Driving( Need to buy separately)
Dark theme : Switch between white theme and dark theme
Music playback :
Multiple Desktop Window Function (For example: ZLINK , GPS , OBDII , DVR , TPMS etc. )
Navigation , Weather Display , Split Screen , Bluetooth phone, Radio functions ,One key to enter the secondary page, Customizable application add, delete, move.
Support Torque Pro ( OBD2 & Car ) : You can connect a PJ-908 Bluetooth OBD2 Scanner Tool to use this function. Note: this PJ-908 Bluetooth OBD2 scanner Tool is not included,you can contact us to buy it together.
DAB+ Box ( Needs to order separately) : This radio has been installed DAB player APP, just connect with a DAB+BOX via USB Port to use this DAB+ Function, support input digital radio Programs and touch operation.you can use unit's touch screen to search and change programs ,and this unit can supply power to the connected DAB+ BOX.
TPMS Function( Needs to order separately) : Tire Pressure Monitoring: Real-time displays 4 tires pressure and temperature,Tire Pressure Monitoring system will be warning when the tire temperature is high, pressure is low.
Small cooling fan : Note: the S series 8Core shipped from China all included.; 4Core items not includes the Fan and not support this function.
GPS Navigation: Supports Online and Off line Google map, Navitel, Waze, Herewego To avoid congestion choose lanes recently , the way of voice complement sensory information.
Optical and coaxial digital audio output : This function is only supported by S5/S6/S7/S8 series
Supports AV-OUT: AV OUT box ( Needs to order separately)

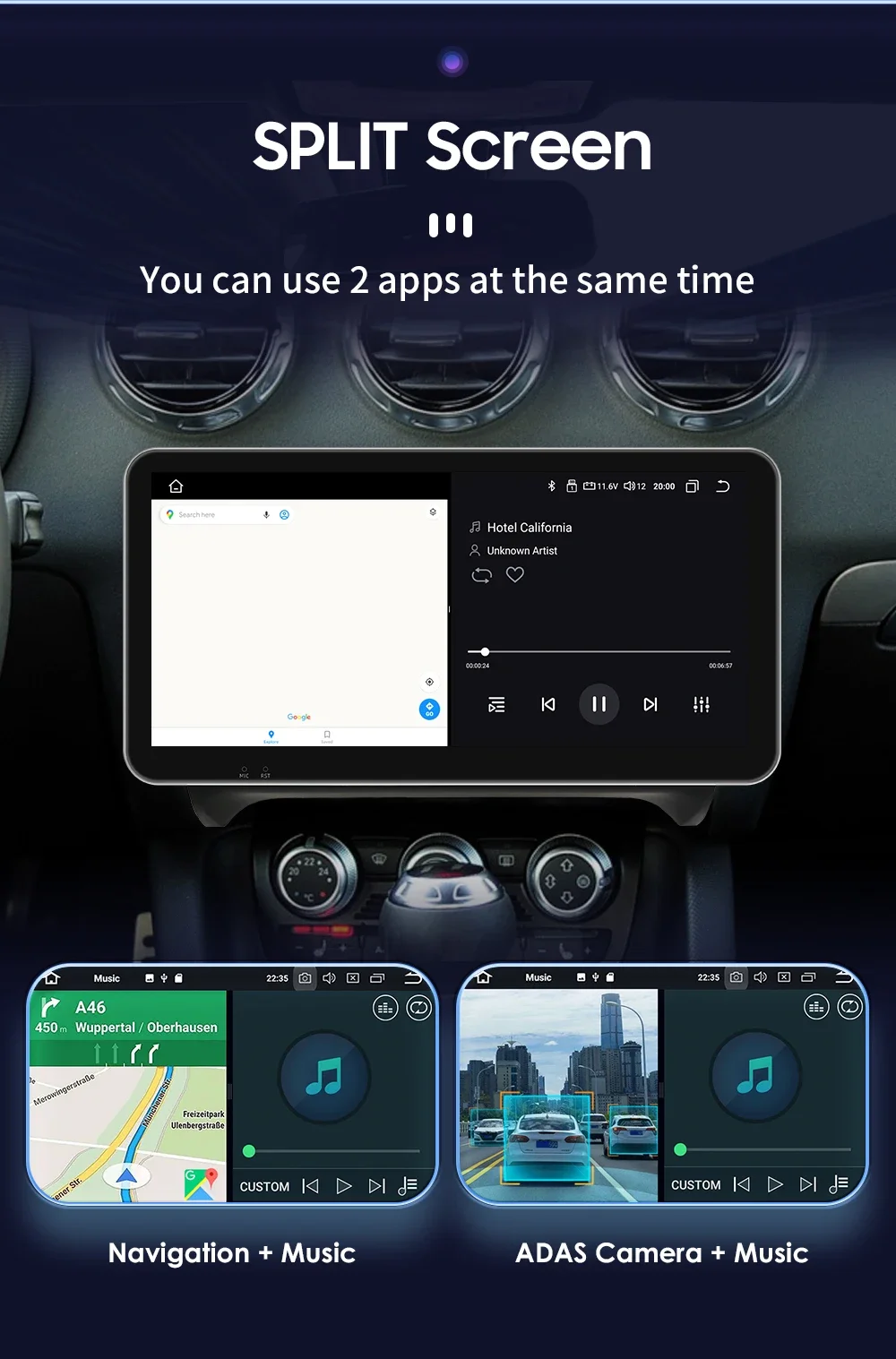

Split Screen : You can use 2 apps at the same time (such as: Navigation + Music , ADAS Camera + Music ,etc.)
PIP(Picture in Picture): the ability to watch video in small window on top of the screen, you car adjust the size.
HD 1080P ADAS DVR Camera(Needs to order separately) --connect with the USB port: LDWS(Lane Departure Warning Distance),FCWS(Forward Collision Warning Distance), 1080P(High Definition Car DVR).
Rear View System(Rear View Camera needs to order separately): A car video system that supports a backup camera displays troublesome blind spots on a monitor , allowing a driver to see hazard such as pets ,children playing ,or mailboxes ,as they backup.
Steering Wheel Control: You could change the music ,volume more easily via your steering wheel and also make your driving safer.

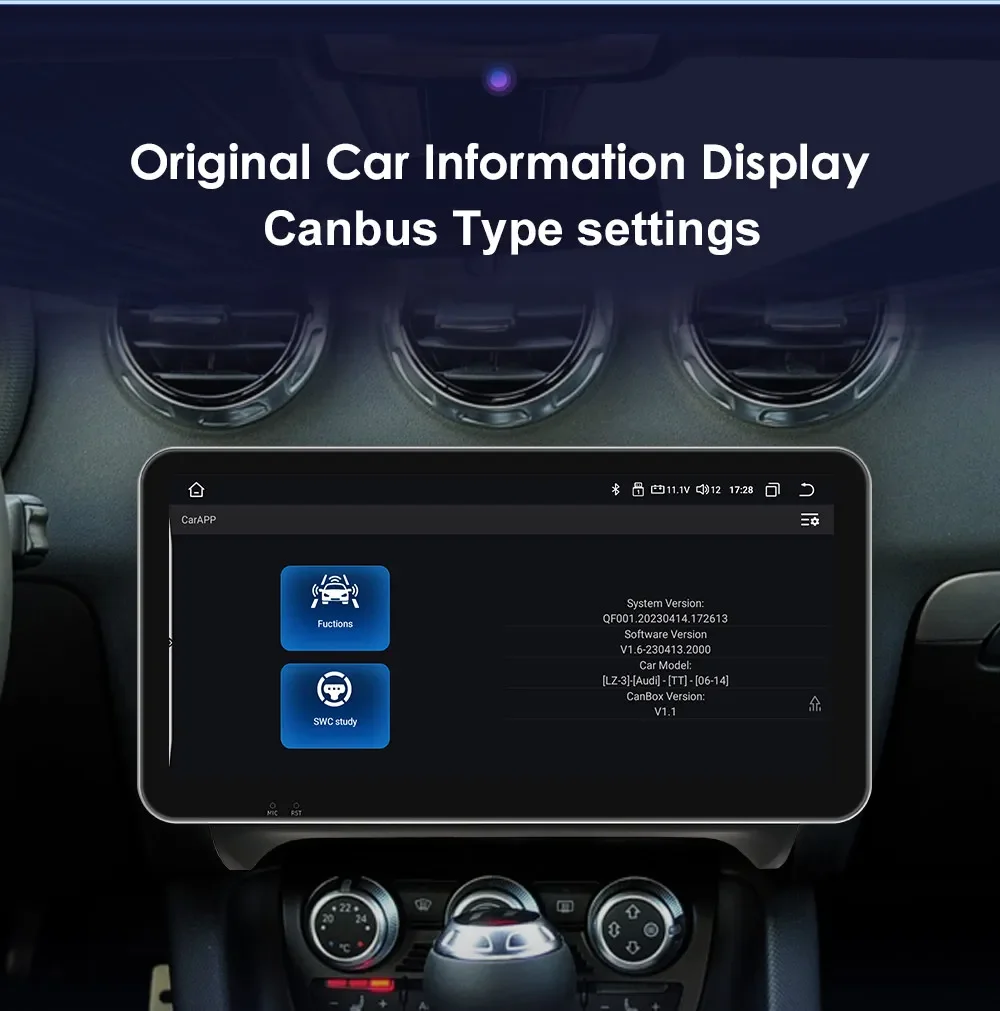

Original Car Information Display:

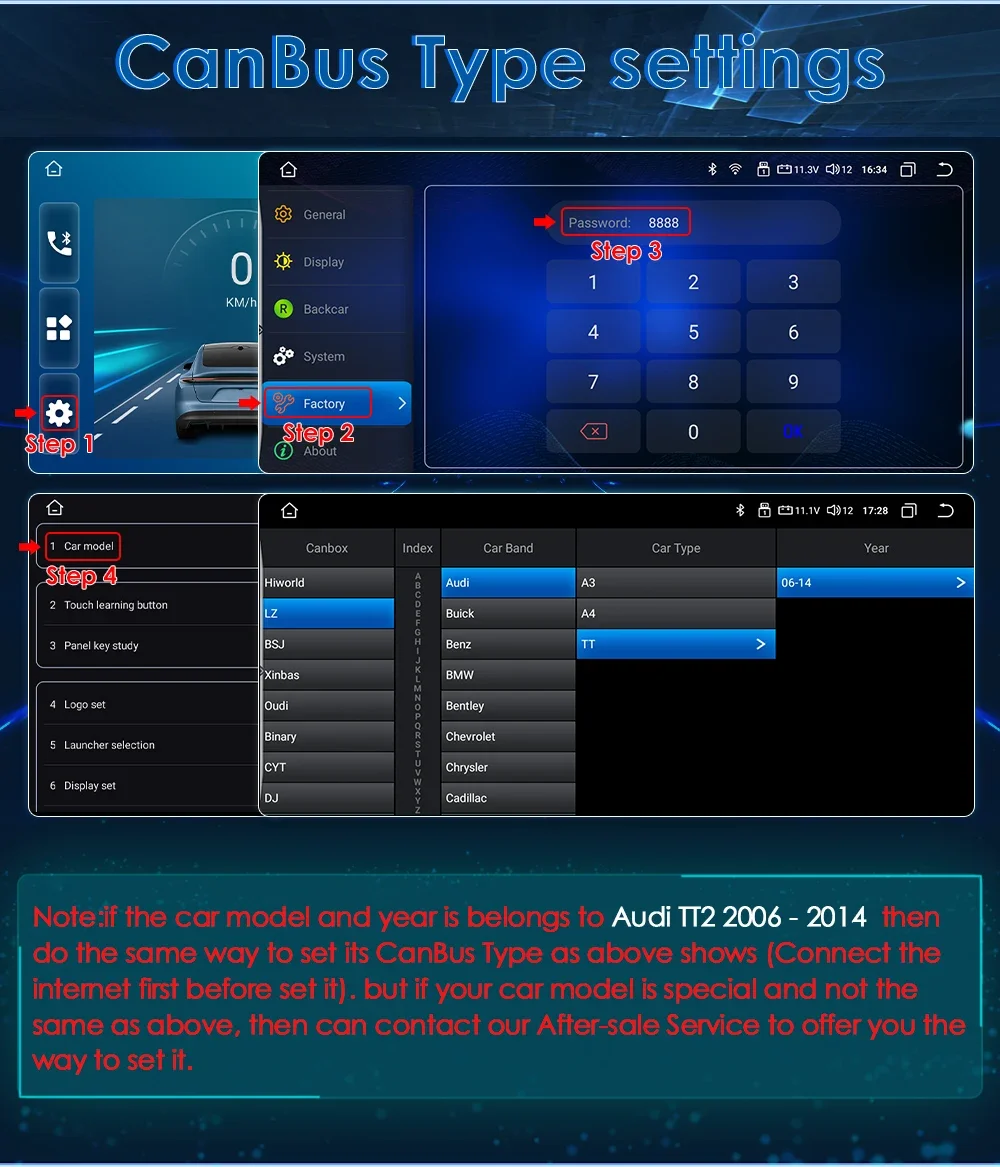

Canbus Type settings: Factory--8888--Car model-- LZ--Audi--TT--06-14--ok.

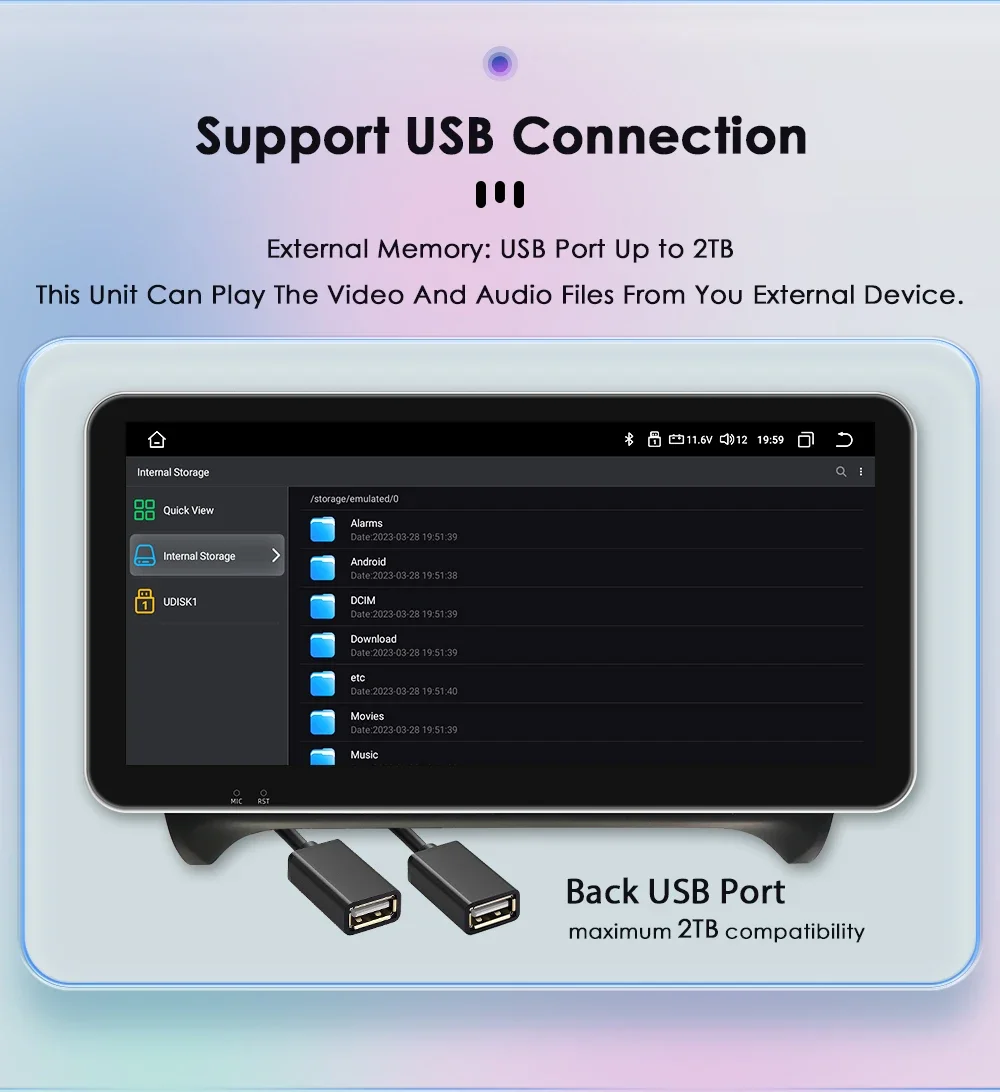

Support USB Connection:
External Memory: USB port up to 2TB,this unit can play the video and audio files from your external device.
Its Wire Diagram of each pin wire details:
10.33inch optional radio's wire diagram as follow:
9inch or 10.33inch optional radio's wire diagram as follow:
10.33inch back side and with wire diagram details:
9inch / 10.1inch back side and with wire diagram details:

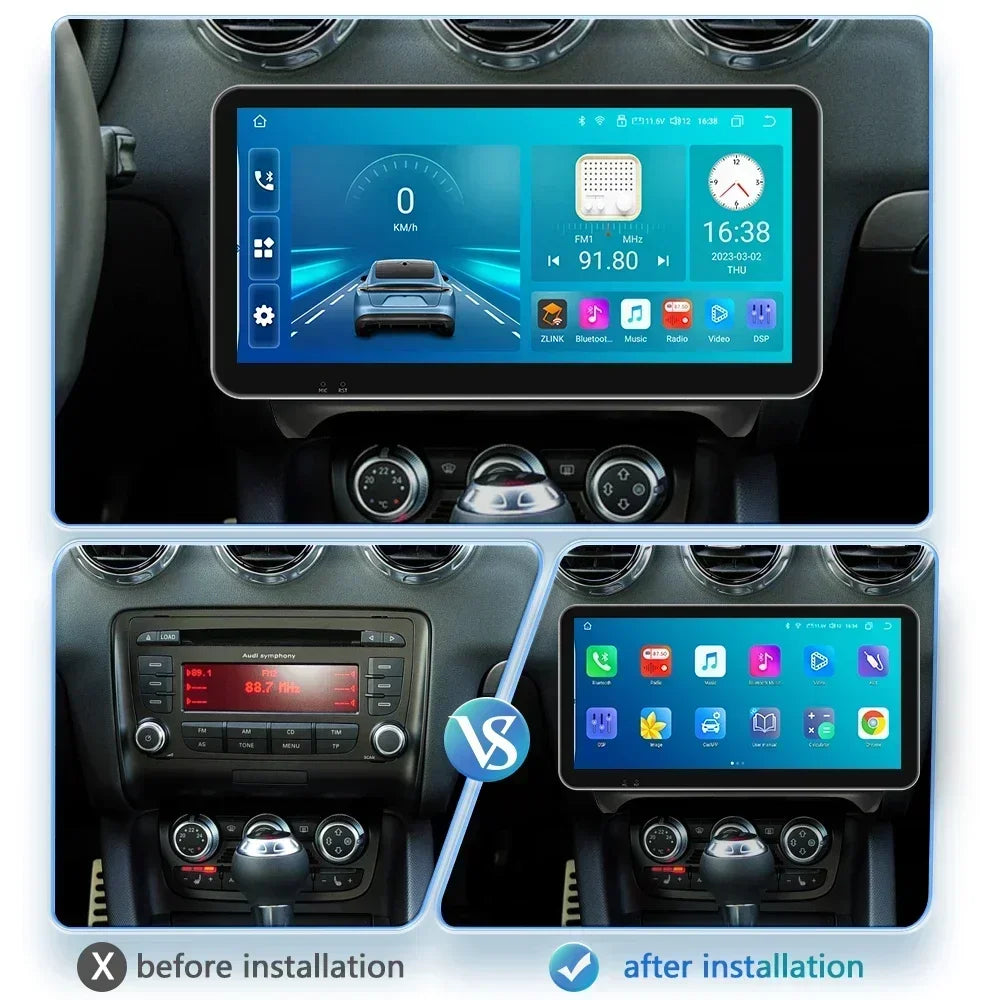

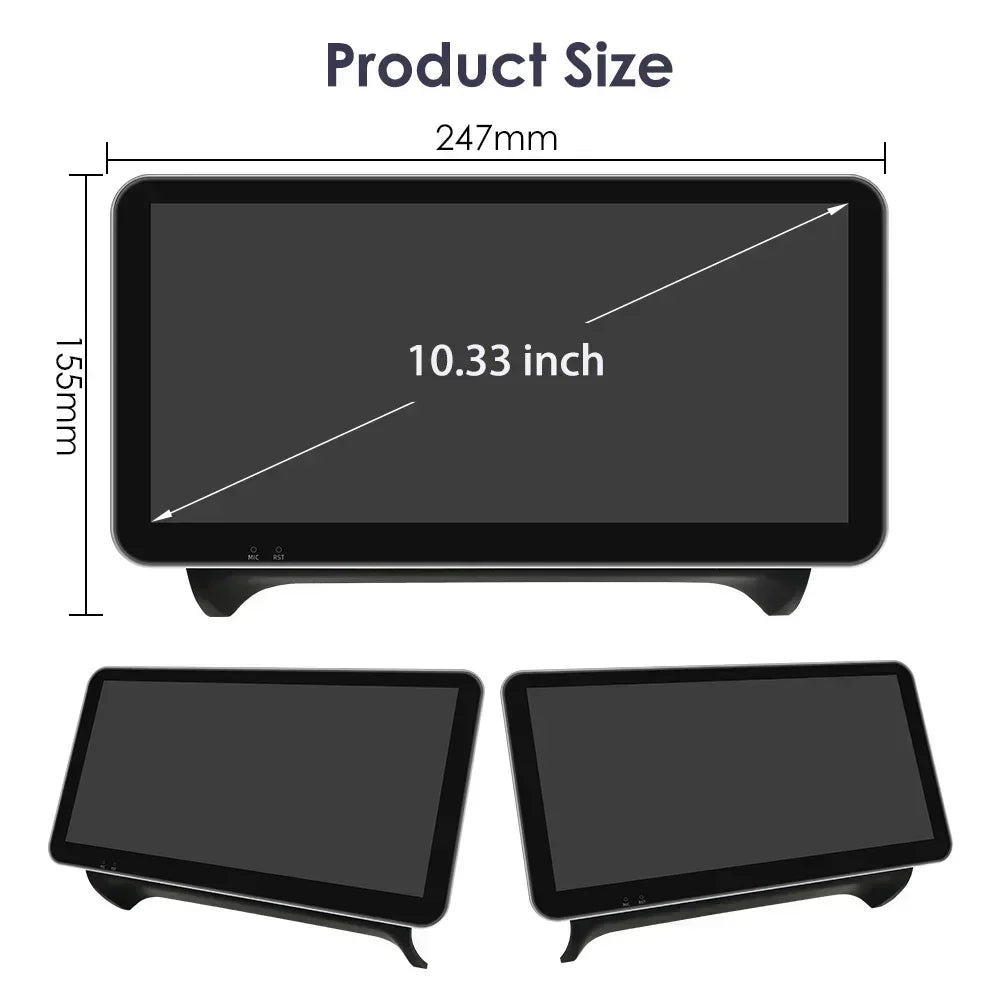

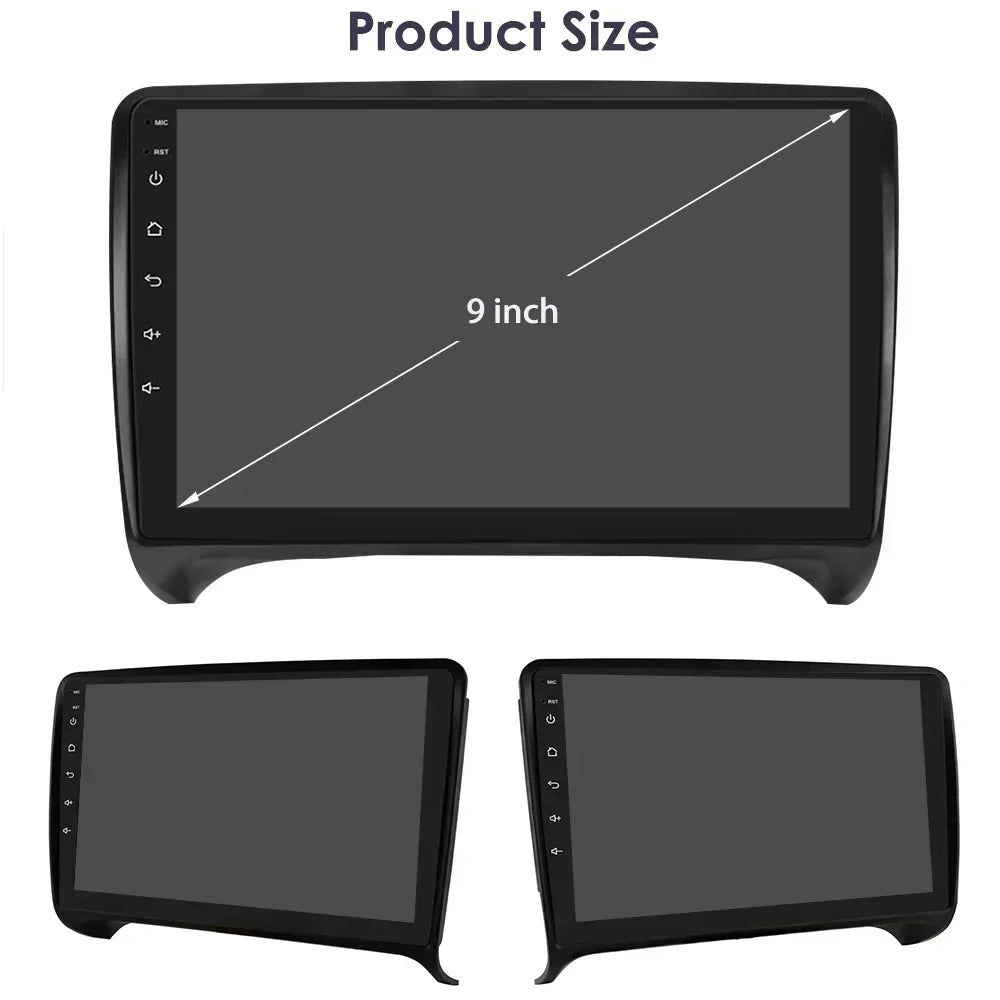

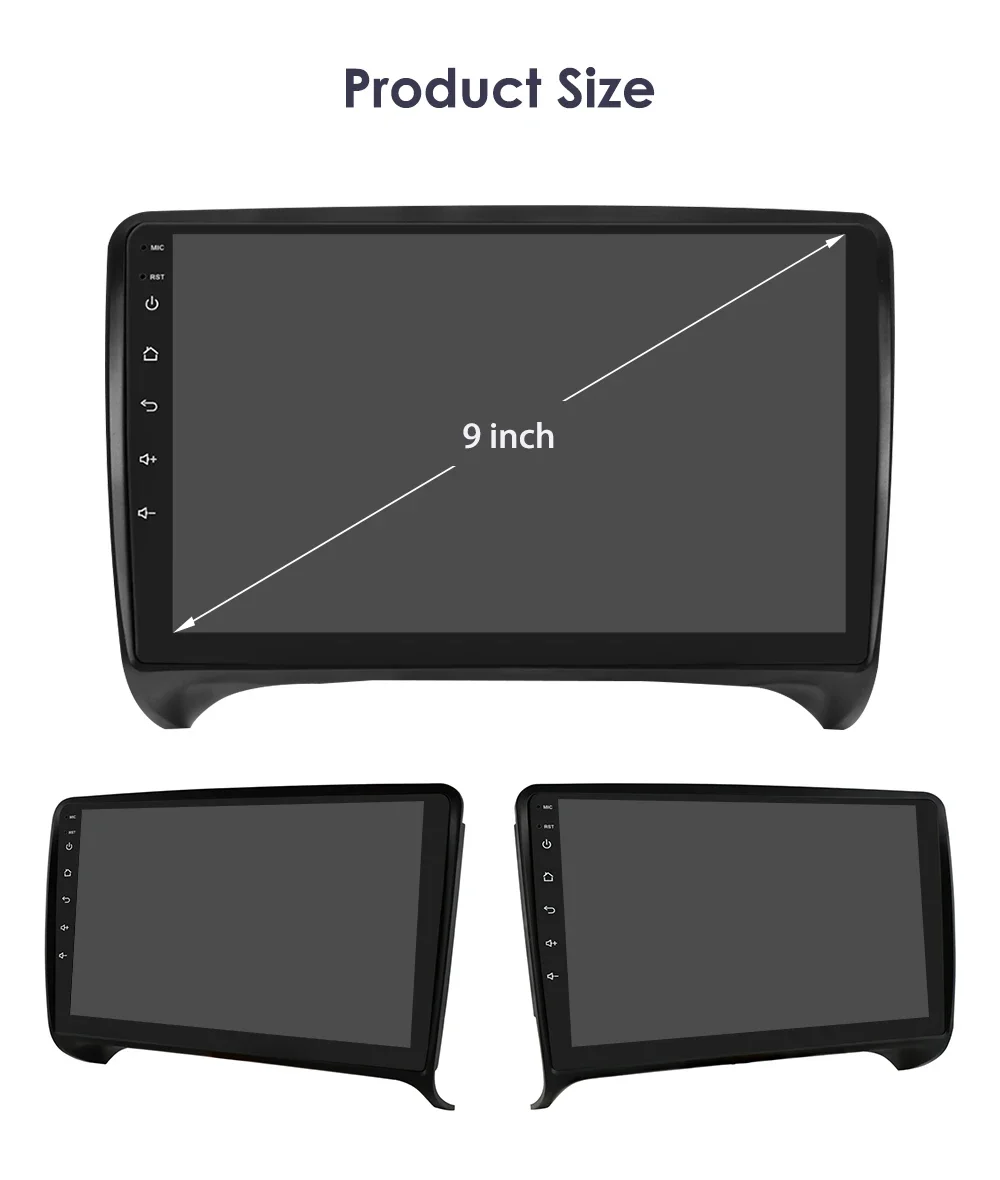

Product Size: have two option as follow picture for you to choose ,one is 10.33inch screen type ,another is 9inch / 10.1inch screen version . Please kindly to compare with your original radio's size before bidding ,if size's are different which cannot install.

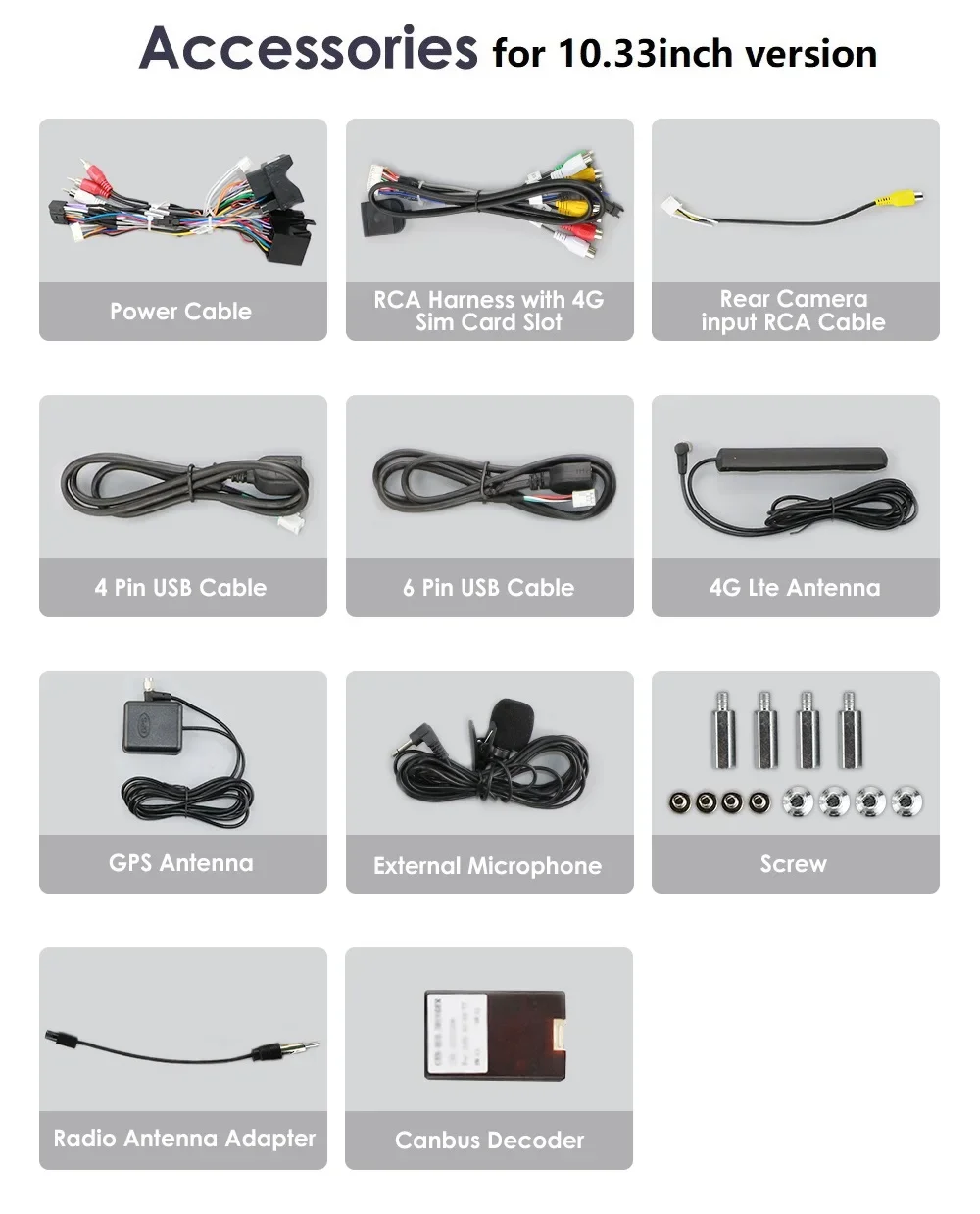

Standard Accessories: which ship with the head unit together(ma fai attenzione alle parole rosse degli accessori, se puoi ottenerli o meno, dipende dall'opzione dell'articolo che scegli di acquistare)

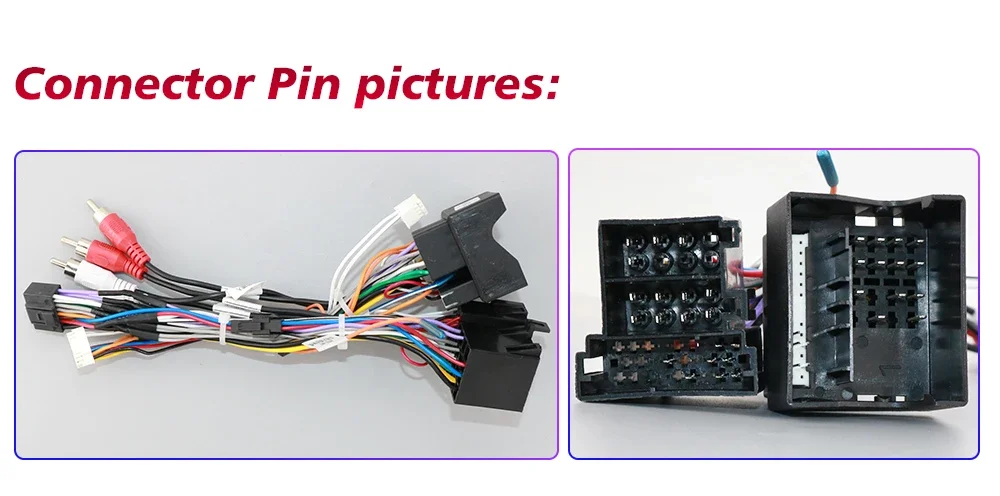

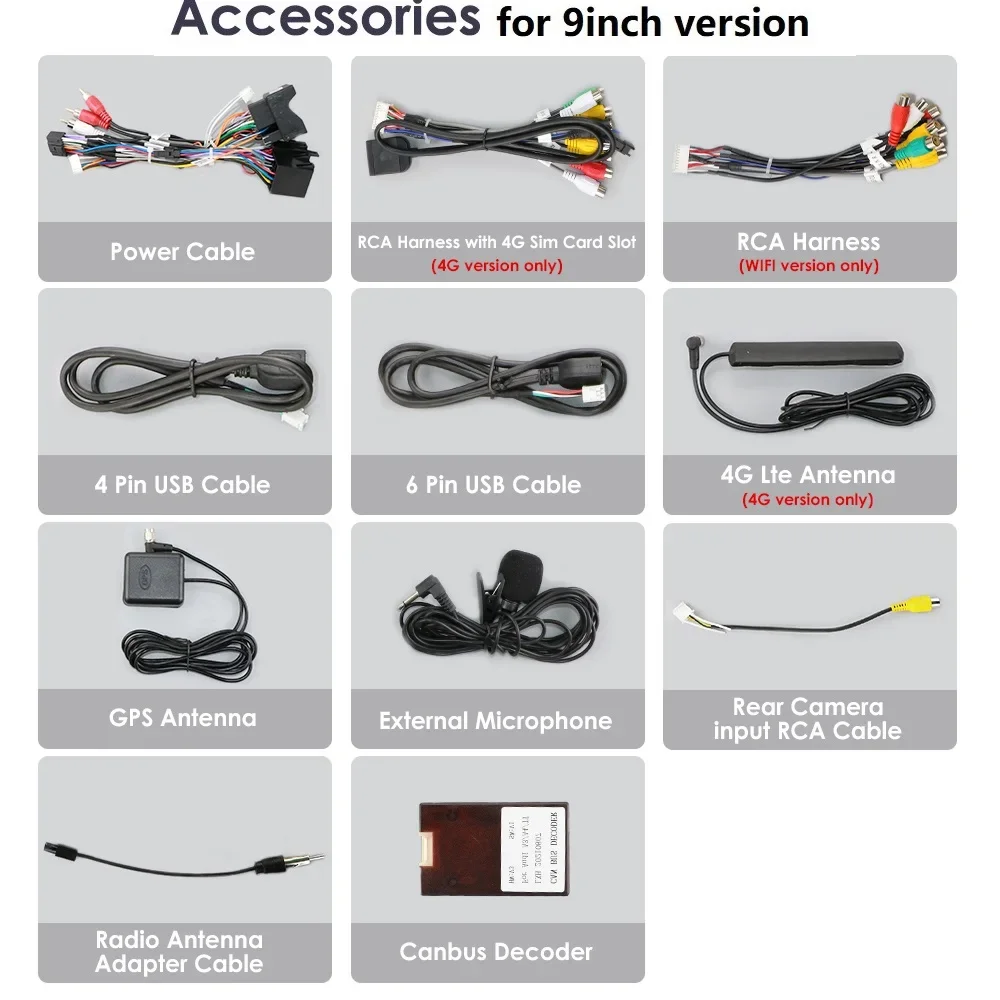

hai due opzioni come nell'immagine seguente tra cui scegliere, una è il tipo di schermo da 10,33 pollici con la seguente prima immagine che mostra gli accessori standard, un'altra è la versione con schermo da 9 pollici / 10,1 pollici con accessori standard (segui la seconda immagine degli accessori). Immagini dei pin del connettore:
(Nota: se il pin del connettore da installare con il cavo dei cavi dell'auto non è lo stesso, è necessario contattare il servizio post-vendita per ordinare un cavo speciale per l'installazione)
